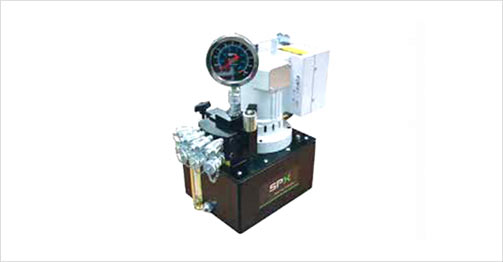

The PE55TWP-BS has been the market leading electric pump for over 30 years & is therefore tried & tested. A simple, light-weight design with a recent upgrade that has created a cost-effective workhorse.

• Quality means Lower Life-Cycle Costs:
• Over 100,000 cycles
• Continuous duty up to 50°C (122°F) ambient
• Proven design = Proven reliability
• Enhanced Usability
• Two Speed High Performance pump
• Retract side internal relief valve protects tool
• Hand remote
• Four-tool manifold (-4 models only) allow use of up to four tools simultaneously
• 4" calibration capable gauge
• Use with single or double acting tools
• Designed with Safety in Mind
• Easily adjusted pressure regulator (relief) valve
• 103 bar (1,500 psi) pressure retract relief valve

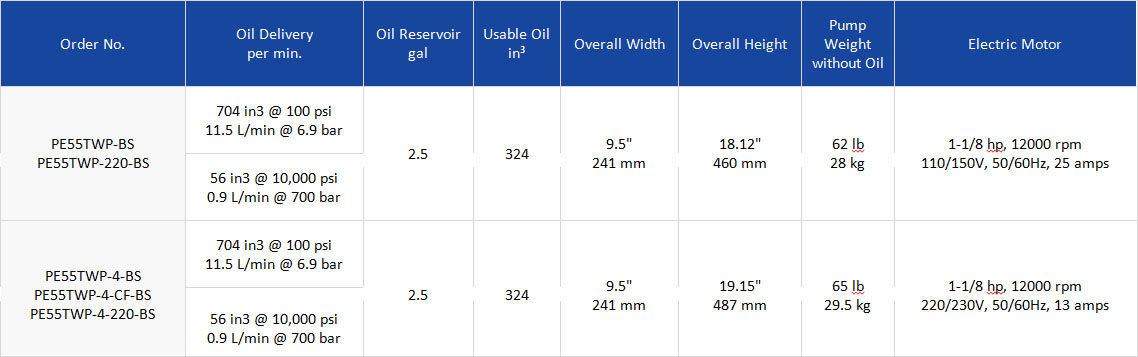

• Size (L x W x H) : 147 cm x 24 cm x 49 cm (18.5" x 9.5" x 19.2")
• Weight : 29.5 kg (65 lb) [without oil]
• Maximum Oil Capacity : (vented reservoir)
• 6.8 L (1.8 Gallons) [to fill line]
• 5.3 L (1.4 Gallons) [usable]
• Operating Environment: -25°C to +50°C (-13°F to +122°F) (When operating near temperature extremes, it is recommended to use hydraulic oils that are rated for those temperatures. Refer to service manuals and cooling options)
• Sound Level : 87-92 dBA (max)
• Pressure : 0 - 700 bar (0 - 10,000 psi)
• Typical Flow : 11.5 L/min - 0.9 L/min (704 in3/min - 56 in3/min)
• Power : 1-1/8 hp Universal Motor
• 110/115V - 50/60 Hz (25 amps)
• 220/230V - 50/60 Hz (13 amps)
