Hydraulic Cylinder

Single Acting General Purpose Cylinder

ES SERIES

Shown from left to right :

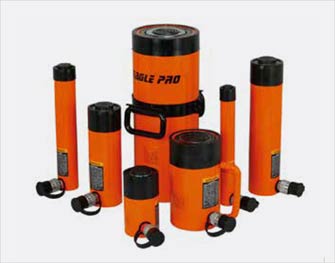

ES-1010, ES-256, ES-252, ES-10010, ES-504, ES-59, ES-2510

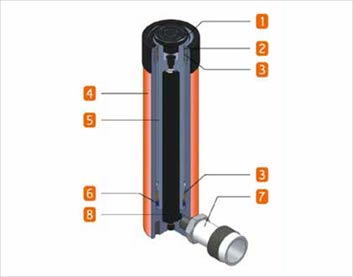

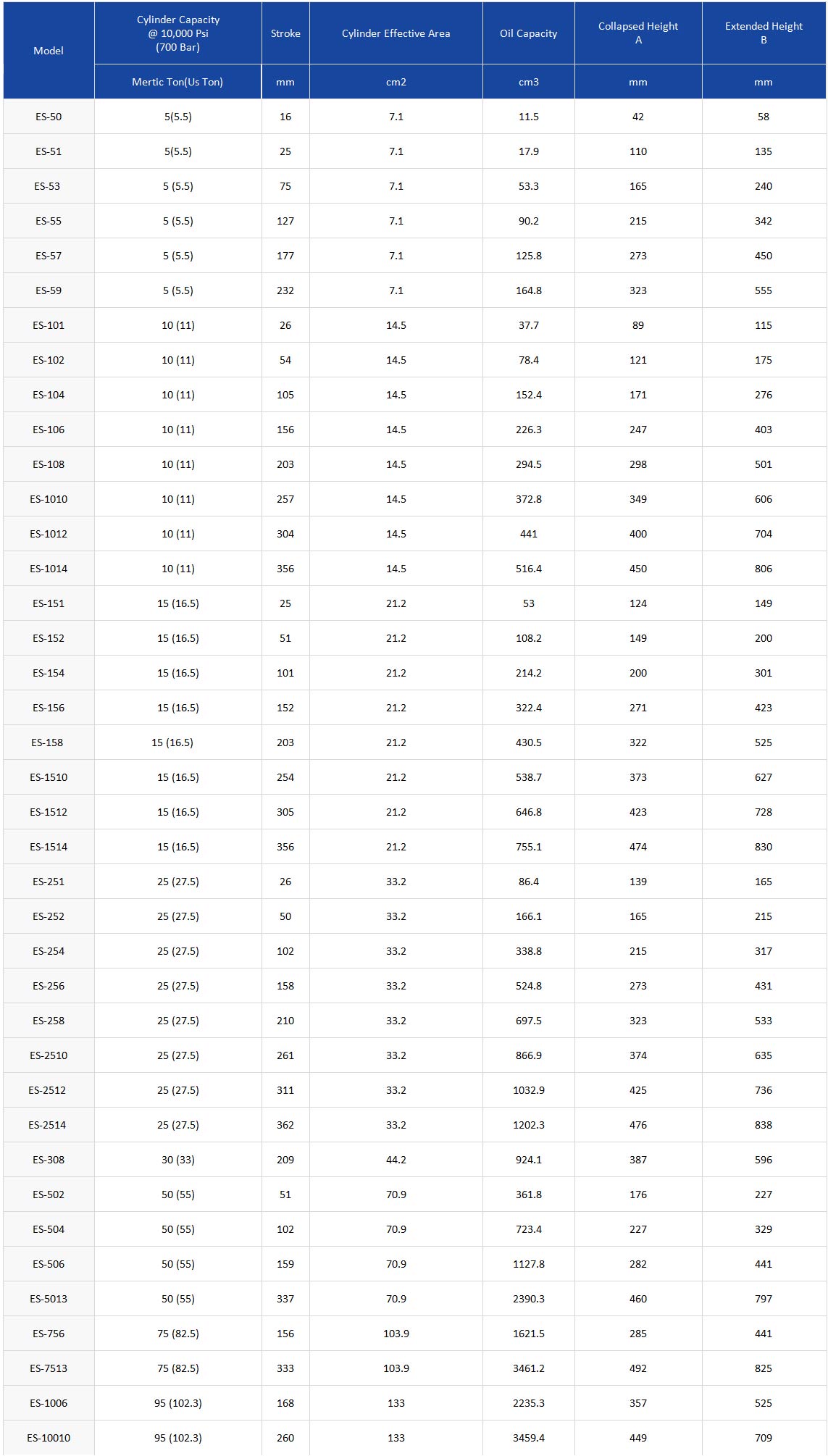

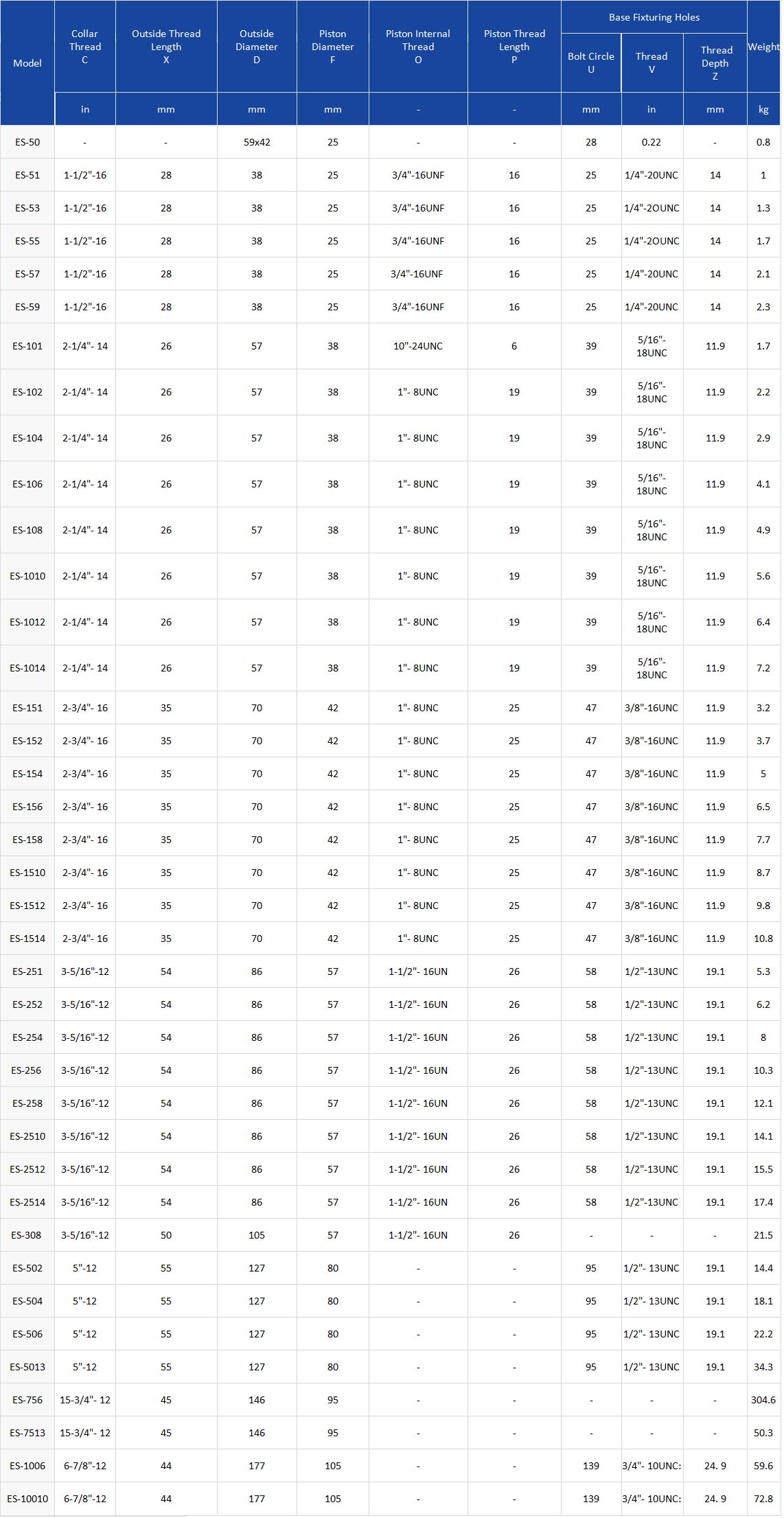

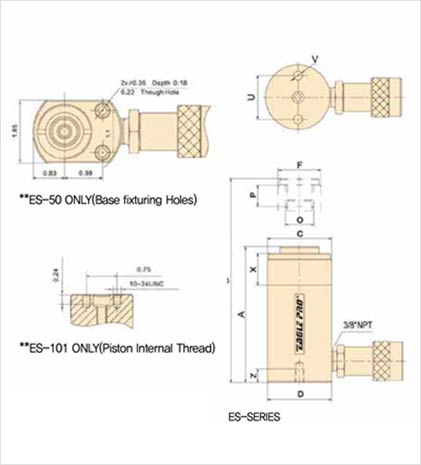

Eagle Pro ES series redefines durability for the harshest of industrial environments with its high strength alloy steel construction. Hardened and chromed piston ensures superior product life by reducing wear and corrosion. Eagle Pro ES series is not only durable, it gets the job done! Heavy-duty, straight pull return springs provide fast retraction. For greater flexibility and easy mounting, the ES series comes with collar, multiple piston threads, and base mounting holes.

Features

Hardened alloy steel guide ring elimates over travel and provides support to reduce wear from off center loads.
Heavy-duty wiper ring keeps dust and debris out of the cylinder body, improving perfomance and service life of the cylinder.
High strength composite bearing provides support for off center loads without damaging the cylinder walls.
High strenght alloy steel body is precision machined to reduce wear and features a baked enamel finish for durability and corrosion protection.
Hardened and chromed piston reduces wear and corrosion.
Industrial U-cup style seal prevents costly leaks.
Standard coupler provided with dust cover.
Heavy-duty, straight pull return springs provide quick retraction times.

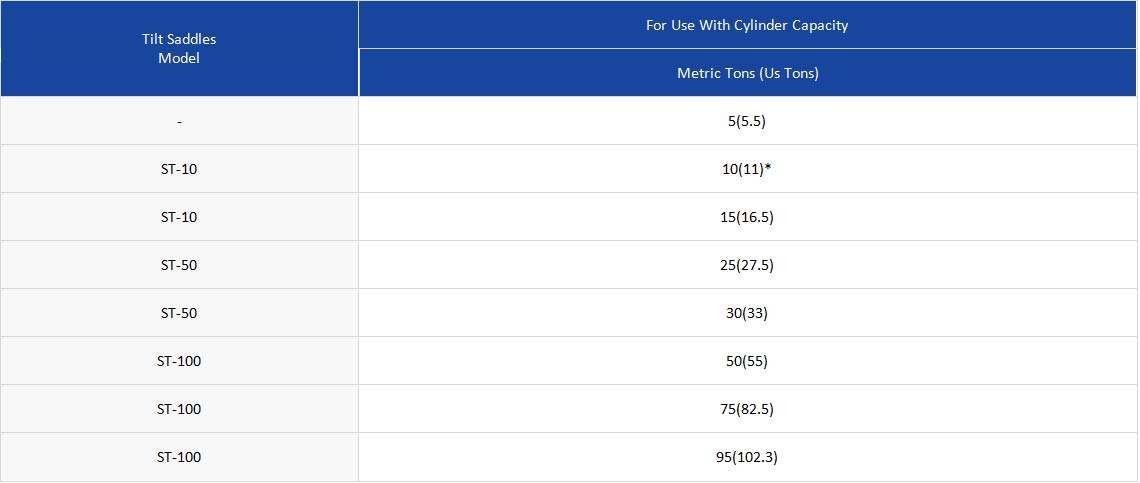

Optoonal Tilt Saddles

*Except ES-101

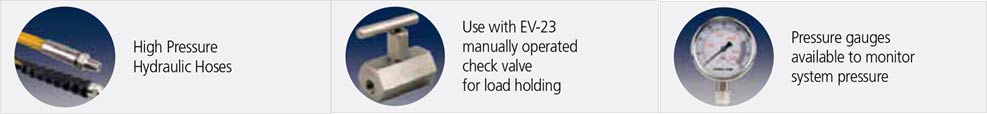

ACCESSORIES

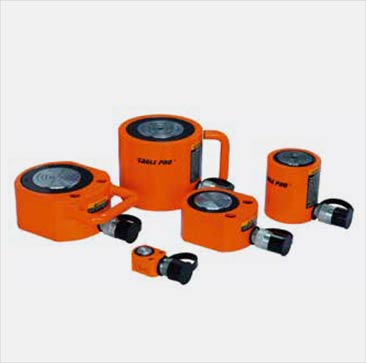

Single Acting Hollow Cylinders

ESL SERIES

Shown from left to right :

ESL-1000, ESL-1002, ESL-50, ESL-500, ESL-302

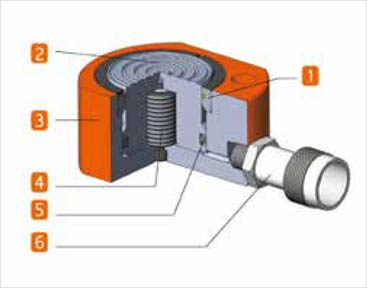

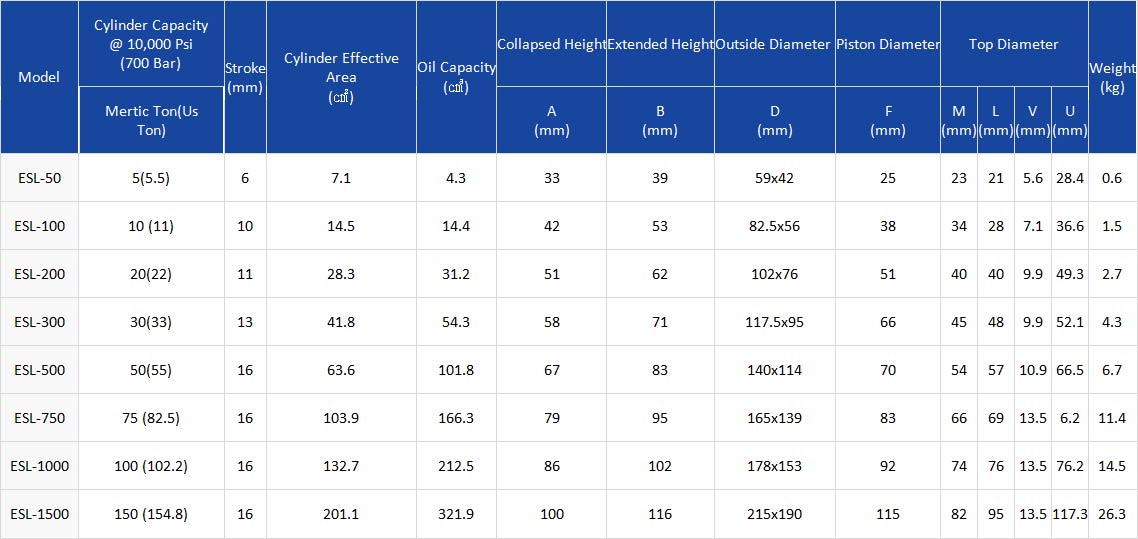

Featuring a low-profile, or a flat design, the Eagle Pro ESL series cylinder is an optimal choice for confined spaces. The hardened and chromed piston is constructed of high strength alloy steel that increases durability by reducing wear and corrosion. The grooved piston end does not requirea saddle and the inclusion of mounting holes permits easy fixturing. Retraction time is quick thanks to the heavy duty, straight pull return springs. An environmentally friendly coating process is used to provide the durable anti-corrosion finish. The female coupler comes with a dust cover - preventing dirt and debris from entering the hydraulic system. The Eagle Pro ESL Series complies with ASME B30.1 standards.

Features

Hardened alloy steel guide ring elimates over travel and provides support to reduce wear from off center loads.
Hardened, chromed, and grooved piston reduces wear and corrosion.
High strength alloy steel body is precision machined to reduce wear and features a baked enamel finish for durability and corrosion protection.
Heavy-duty, straight pull return springs provide quick retraction times.
Industrial seal with backup gaskets prevent costly ECR
Standard coupler provided with dust cover.

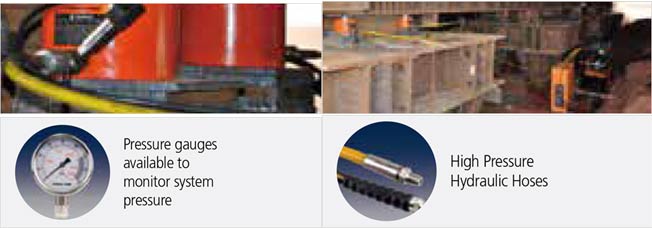

ACCESSORIES

Single Acting Aluminum Cylinders

ESH SERIES

Shown from left to right:

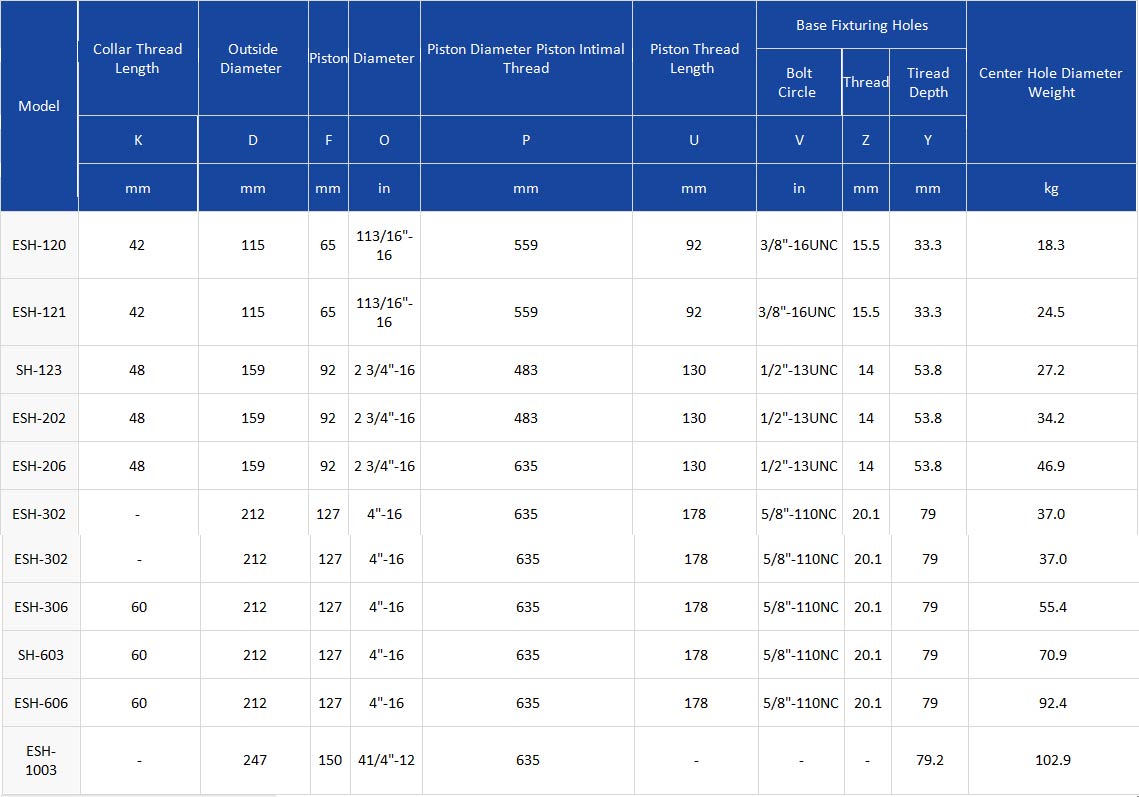

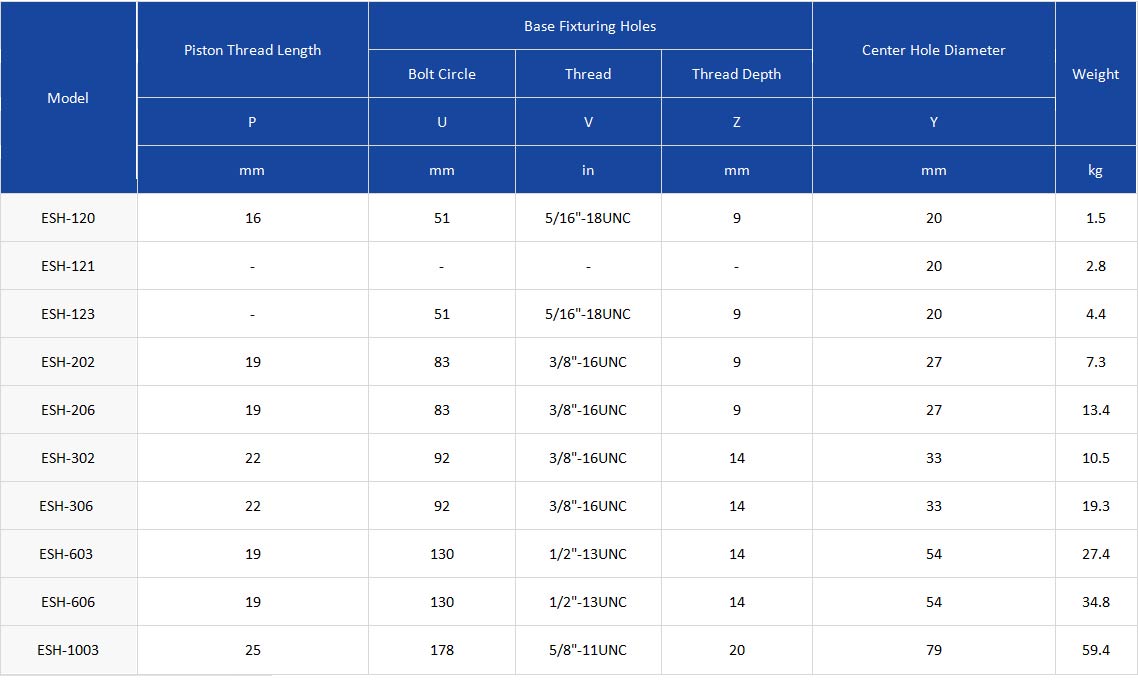

ESH-302, ESH-120

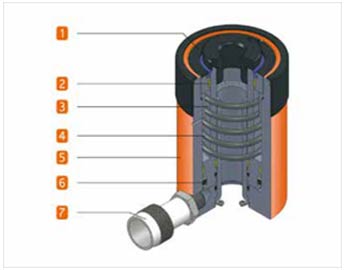

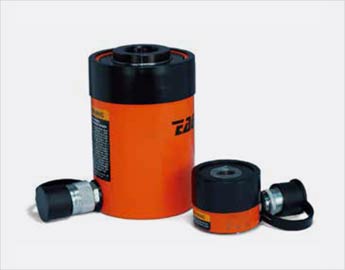

The Eagle Pro ESA series is conveniently lightweight and easy to carry. The high strength aluminum alloy is treated to increase resistance to wear and corrosion. Heavy-duty, straight pull return springs provide quick reaction times. Composite bearings prevent metal-to-metal contact, and protects against side loads. The Rugged, EAB-201A female coupler with dust cover included provides a shield against dust and debris. The Eagle Pro ESA series complies with ASME B30.1 standards.

Features

Hardened alloy steel guide ring elimates over travel and provides support to reduce wear from off center loads.
High strength composite bearing provides support for off center loads without damaging the cylinder walls.
Hardened and chromed piston reduces wear and corrosion.
Heavy-duty return springs provide quick retraction times.
High strength alloy steel body is precision machined to reduce wearand features a baked enamel finish for durability and corrosion protection.
Industrial U-cup style seal prevents costly leaks.
Standard coupler provided with dust cover.

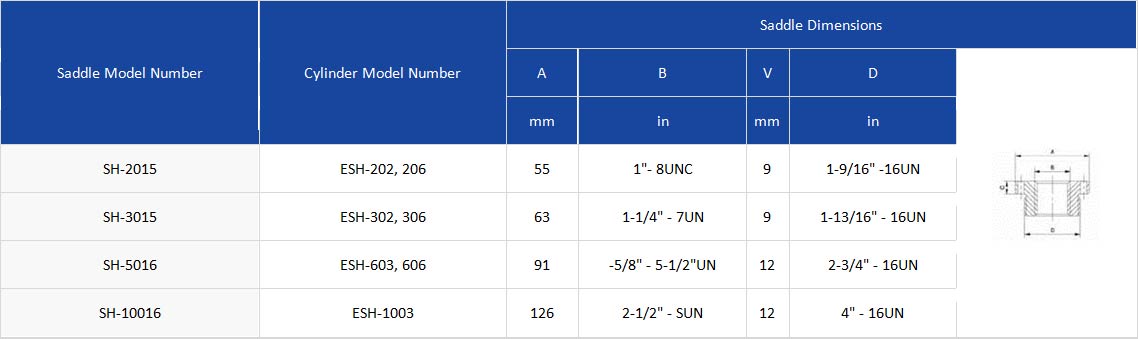

Optional Heat Treated Hollow Saddles

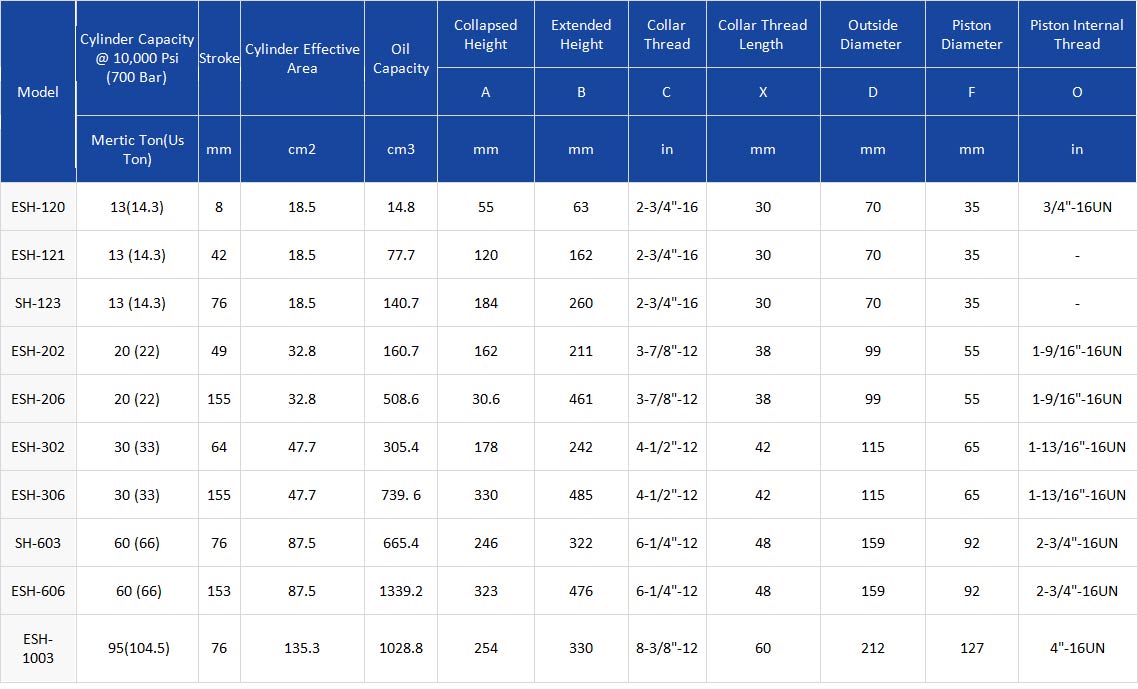

*NOTE : ESH-120. ESH-121 AND ESH-123 HAVE EAB-202A COUPLER, AND 1/4" NPT PORT.

Double Acting Hollow Cylinders

EDH SERIES

Shown from left to right

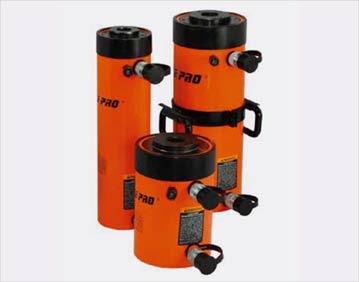

EDH-3010, EDH-603, EDH-6010

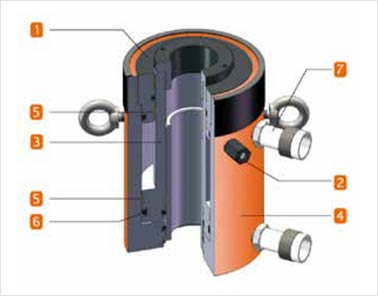

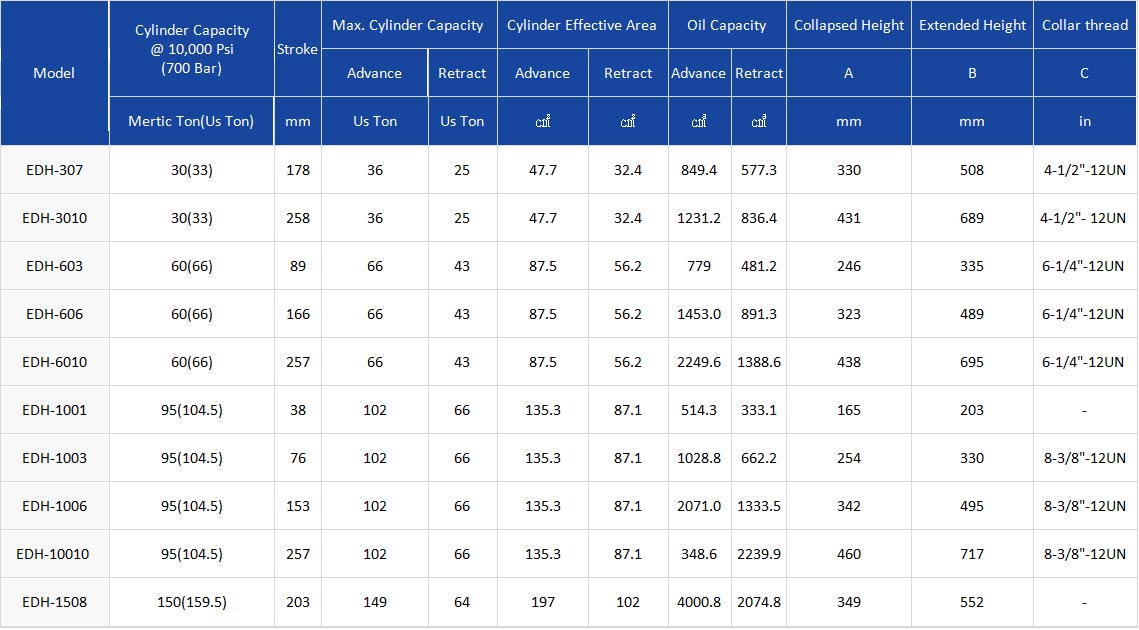

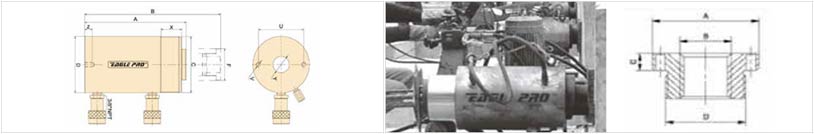

The Eagle Pro EDH series incorporates a hollow piston design that allows both pushing and pulling forces. The construction of high strength alloy steel maximizes durability. The EDH series' double acting operation ensures fast and controlled piston reaction time. Accidental over-pressurization is prevented with a built-in safety valve. The collar, piston threads, and base mounting holes enable easy fixturing. The EDH Series comes with rugged, EAB-201A female couplers, complete with a heavy-duty dust covers, preventing dirt and debris from entering the hydraulic system. The Eagle Pro EDH series complies with ASME B30.1 standards.

Features

Hardened alloy steel guide ring elimates over travel and provides support to reduce wear from off center loads.
Automatic safety valve prevents over-pressurization.
Hardened and chromed piston reduces wear and corrosion.
High strength alloy steel body is precision machined to reduce wear and features a baked enamel finish for durability and corrosion protection.
High strength composite bearing provides support for off center loads without damaging the cylinder walls.
Industrial U-cup style seal prevents costly leaks.
Standard coupler provided with dust cover.

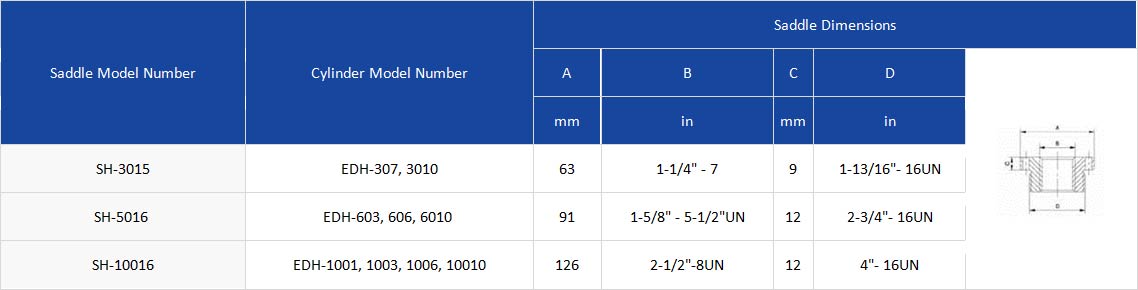

Optional Heat Treated Hollow Saddles

Double Acting Cylinders

ED SERIES

Shown from left to right :

ED-506, ED-7513

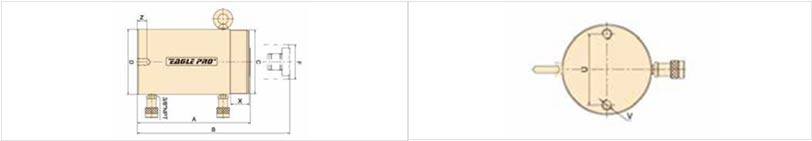

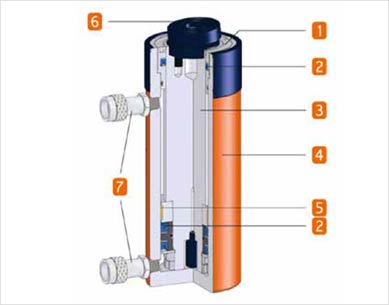

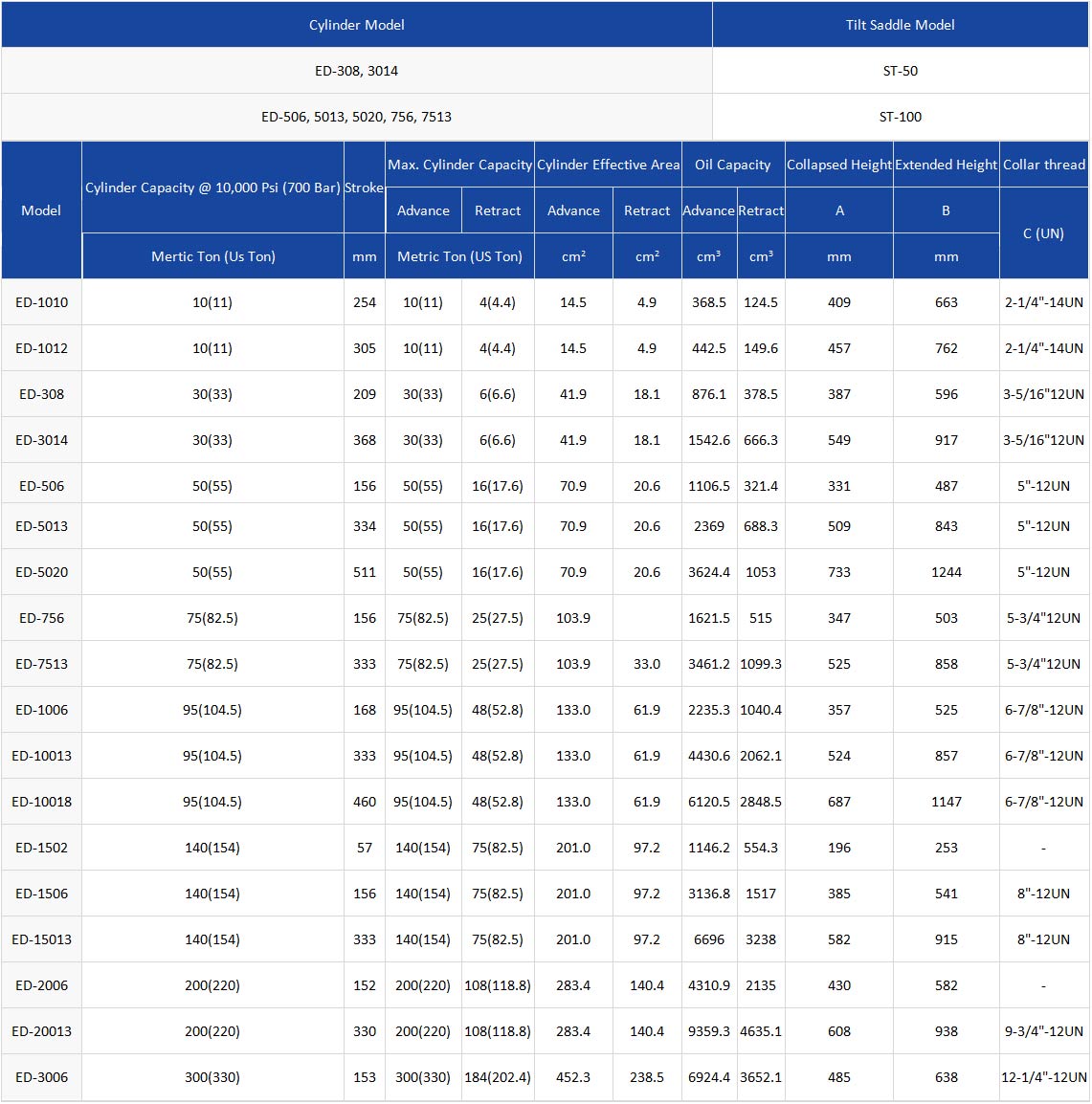

The Eagle Pro ED series produces fast and controlled piston retraction thanks to the double acting operation. A built-in safety valve prevents accidental-over pressurization. Most models include collar, piston threads, and base mounting holes to make fixturing a simple task. Piston jamming and mushrooming is prevented by the cylinder's hardened, and E-coated snap-in saddle. The ED series enhances durability with a hardened and chromed piston that reduces wear and corrosion. ED series cylinders are easy to move around the job site with the addition of carrying handles (and eyebolts on larger models) that ease positioning and carrying. A durable, anti-corrosive finish is added using an environmentally friendly coating process. The ED Series comes with rugged, EAB-201A female couplers, complete with heavy-duty dust covers, preventing dirt and debris from entering the hydraulic system. The ED Series complies with ASME B30.1 standards.

Features

Hardened alloy steel guide ring elimates over travel and provides support to reduce wear from off center loads.
Industrial U-cup style seal prevents costly leaks.
Hardened and chromed piston reduces wear and corrosion.
High strength alloy steel body is precision machined to reduce wear and features a baked enamel finish for durability and corrosion protection.
High strength composite bearing provides support for off center loads without damaging the cylinder walls.
Optional tilt saddles help prevent cylinder damage from off center loads.
Standard coupler provided with dust cover.

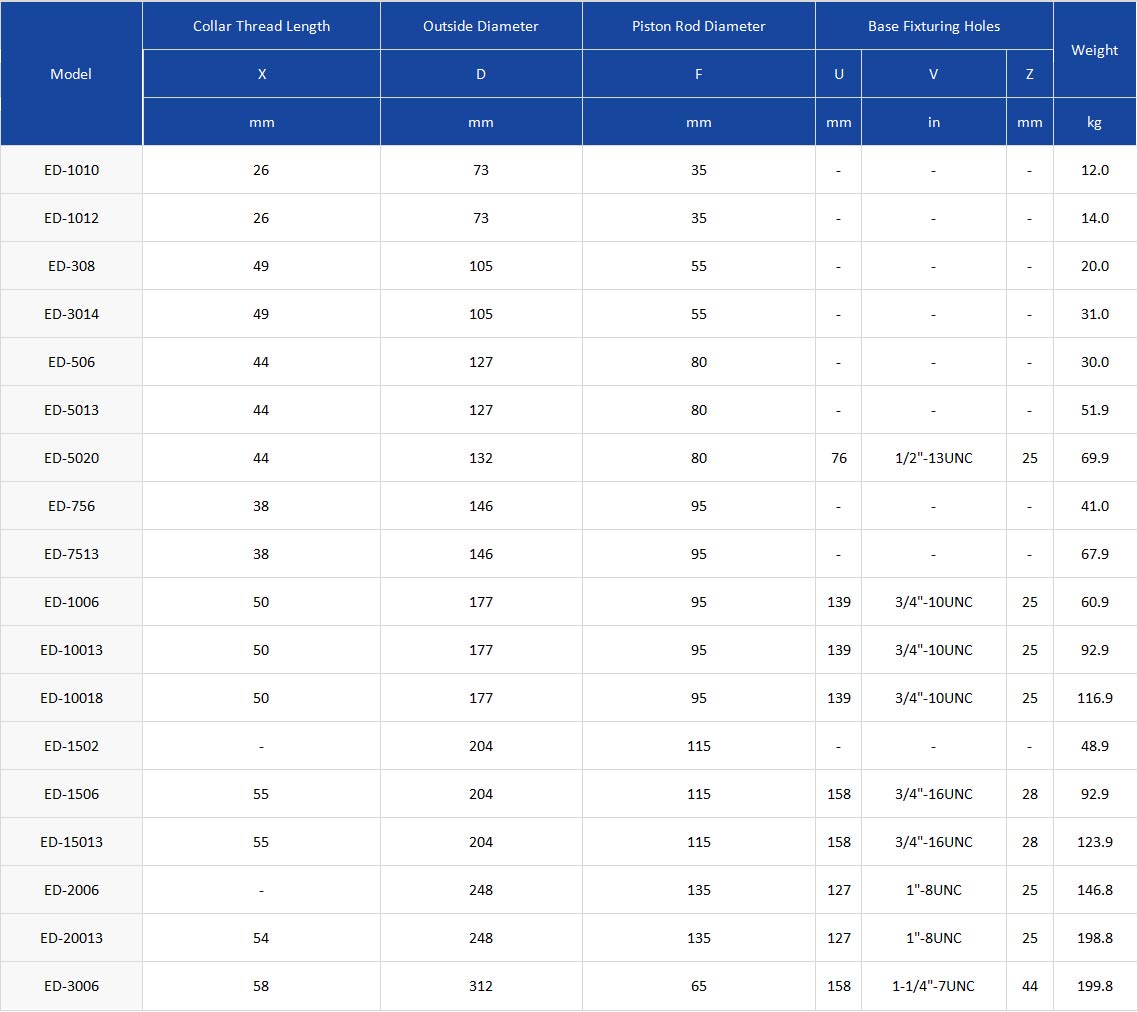

Optional Tilt Saddles
