Electric Torque Wrench

AIMCO Electric Torque Wrench

The Driving Force in Critical Bolting
HIGH TORQUE DC
BOLTING TOOLS

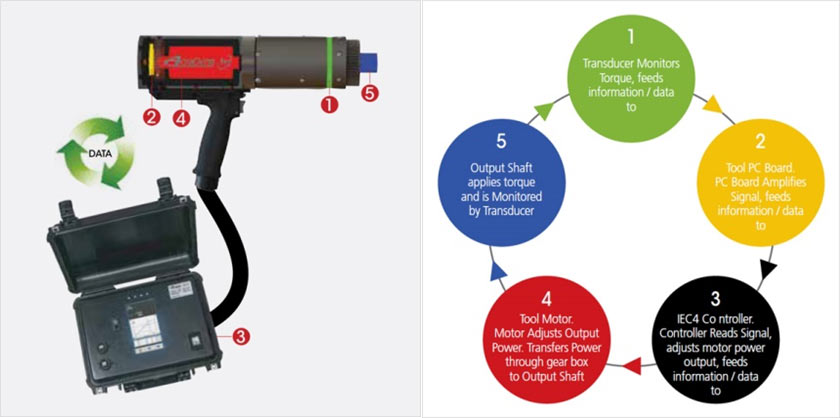

HAVING A TRANSDUCERIZED CLOSED LOOP
SYSTEM MEANS

Don’t settle for guesswork! The built-in transducer ensures torque values are accurate. Dynamic torque is measured at the square drive, unlike the competition
Torque measurement is unaffected by changes in gear efficiency, normal tool wear between calibrations, temperature, voltage, or motor performance
On-tool LEDs for Accept/Reject signals
The system can easily be verified and calibrated anywhere
Interchangeable tools, cables, and controllers - calibrations are specific to the tool not the system as a whole

PRODUCTIVITY

High tool speeds
Able to work with a single operator
Automatic evaluation and data collection

ERGONOMICS

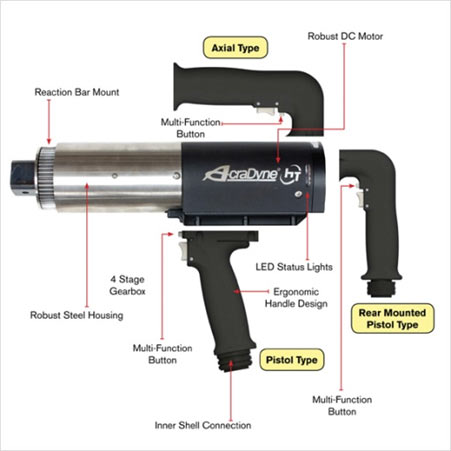

Multiple handle configuration options for optimal tool handling
Programmable acceleration to manage reaction bar behavior against reactive surface

RELIABILITY

Production duty cycle durability
- gearing tested to 100,000 cycles before maintenance

QUALITY

Torque measurement at the output - torque delivered is the torque reported
Broad range of programmable tightening strategies to handle joint characteristics
On-board torque calibration against known standards to ensure accurate results

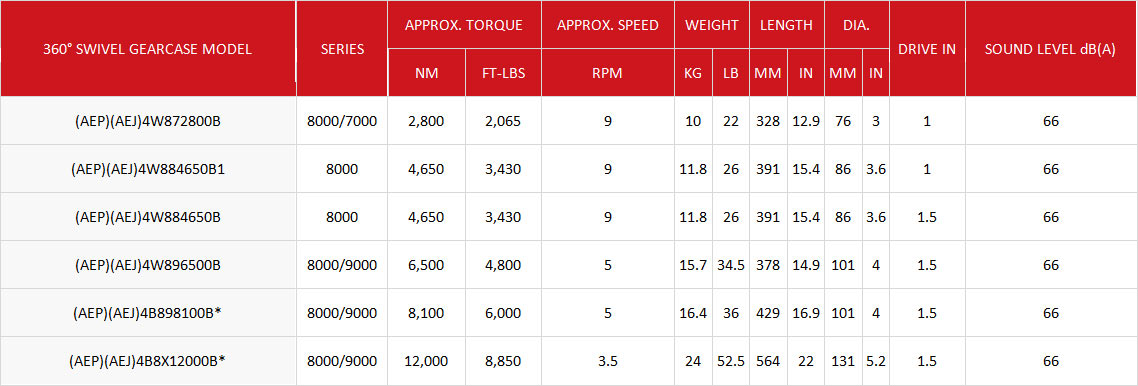

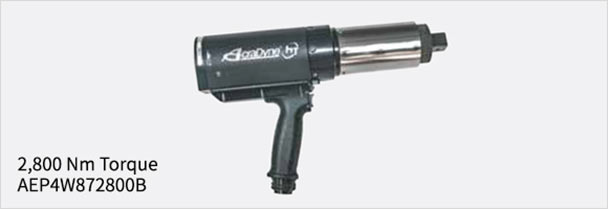

360° SWIVEL GEARCASE NUTRUNNERS

HIGH-TORQUE ANGLE TOOLS

FEATURES AND BENEFITS

Transducerized closed loop control at the output like all AcraDyne HT-Series tools
These low-profile head, small-diameter, lever-operated tools, with the torque measured at the output, offer a unique solution
The torque reported is the torque delivered
Smallest tools of their kind on the market
Same durable, high-cycle gearing as our other HT-series tools

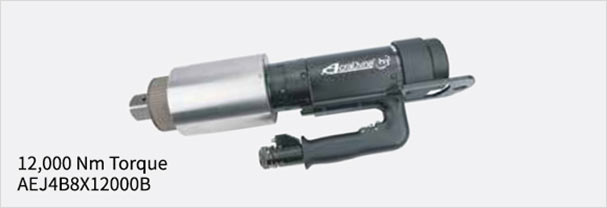

Models up to 12,000 Nm available upon request

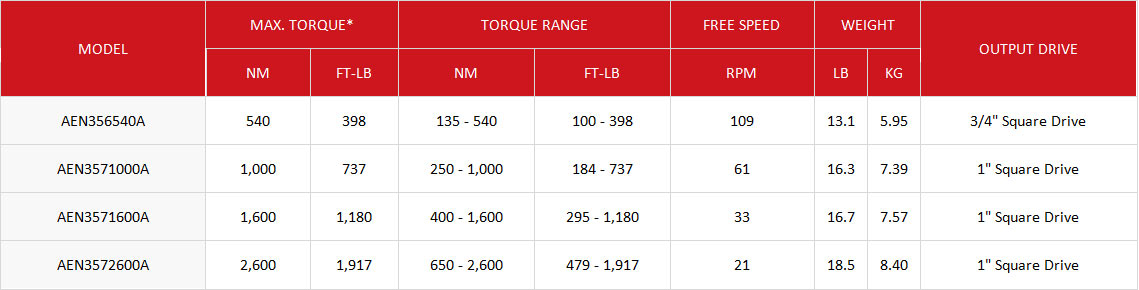

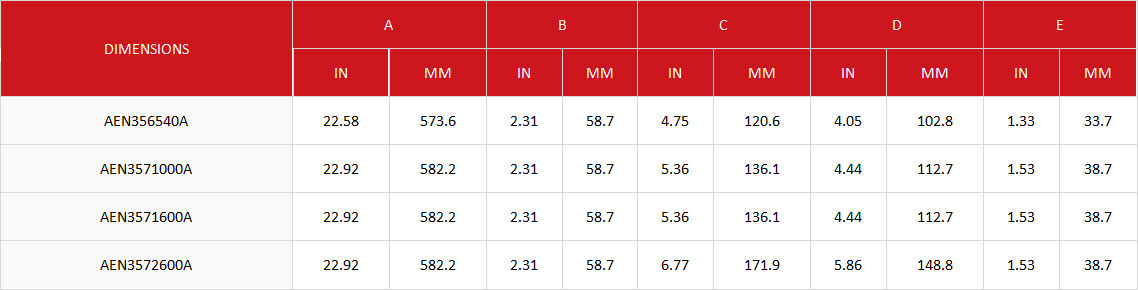

SPECIFICATIONS

GEN IV FIELD CONTROLLER

The Gen IV Field Controller is the core of the modular AcraDyne DC system. One controller will command any tool in the AcraDyne line from 1 Nm to 12,000 Nm, all with one cable.

FEATURES AND BENEFITS

Multiple fastening strategies - Program up to 256 parameters with as many as 20 steps
Jobs capability - 99
Event log - 5,000
Backup & restore through USB
Rundown storage - 1,000,000
Real-time curve viewing. Curve storage - 20,000
Self-contained in its own weatherproof, rugged case to protect it from the toughest environments
