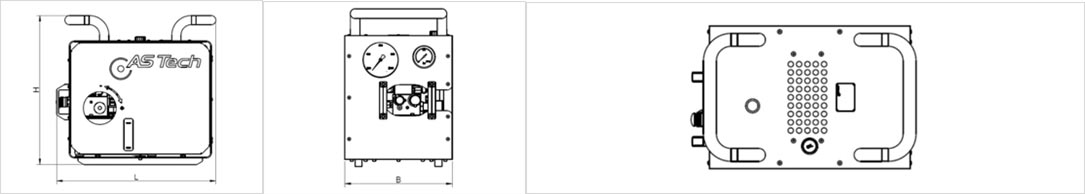

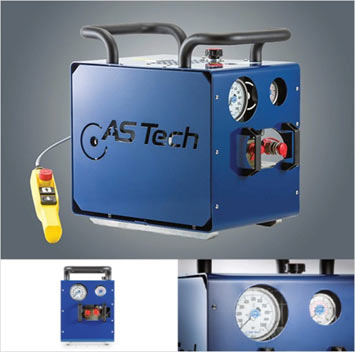

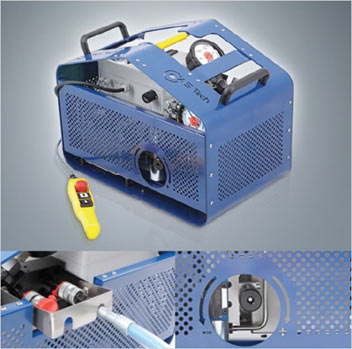

Electric hydraulic power unit EDP with BodAS System

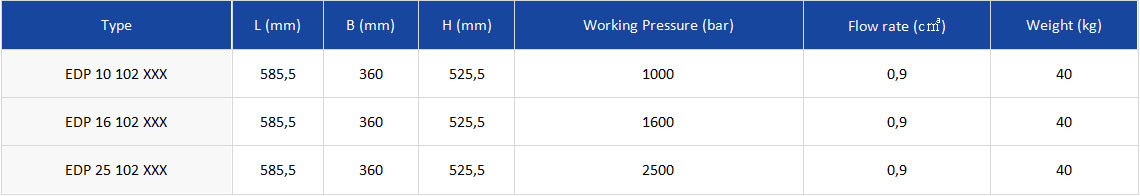

Our proven electric HPU with working pressures up to 2500 Bar and optional circulation cooling, is also available with our BodAS system. If the system is running in automatic mode the user has only to connect the required tool and can start the job. After mounting the tool on the bolt as required, he only needs to press the “start” button. The system will adjust the pressure automatically according to the connected tool. Now the nut has to be tightened and the pressure released. This system simplifies the work and – if all instructions are followed – human errors are reduced to minimum, because the system recognizes the errors and reports accordingly to the operator. The process data are now saved including pressure and elongation ( if the optional stroke sensor was connected). In that way, the entire project will be executed. When the entire project will be executed, when the entire project is finished, the system will generate a tensioning report with all relevant values.
STANDARD DESIGN
- Automatic documentation of all bolted connections in the force flow
- Documentation of pressure, pressure/stroke and remaining pretensioning force
- Data storage on three independent storages
- Data transfer via CanBus

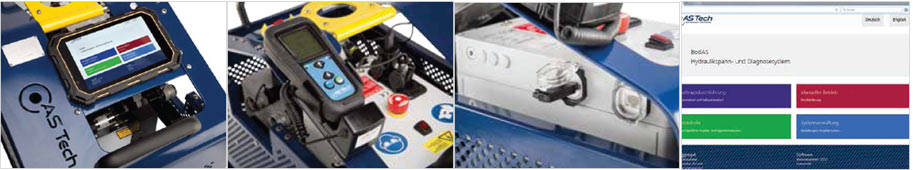

- Direct visualization of the results on an industrial suited tablet (IP 68)
- Wireless remote control with emergency stop button and display to display to visualize the relevant data
- Individual generation and management of tensioning-sequences & projects in a database
- Upgrade/downgrade function
- Remote maintenance/assistance and troubleshooting (Online connection required)
OPTIONS
- QR-Code Scanner
- Oil circulation cooling
- Central data storage via FTP-server
- Automatic order synchronization
