Hydraulic Cylinder Pump

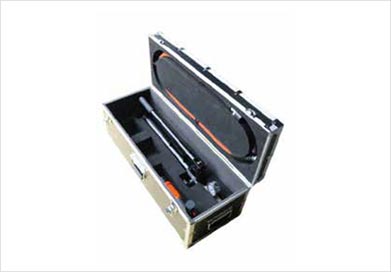

hydraulic-pump-cylinder-sets
HYDRAULIC PUMP AND CYLINDER SETS
FEATURES
  • Each set comes with a 6 ft hose, high flow coupler, gauge, and gauge adapter.
  • Low weight, high flow, two speed hand pumps for efficient operation.
  • Cylinders can be used in multiple applications.
  • Heavy duty carrying and storage case Included.

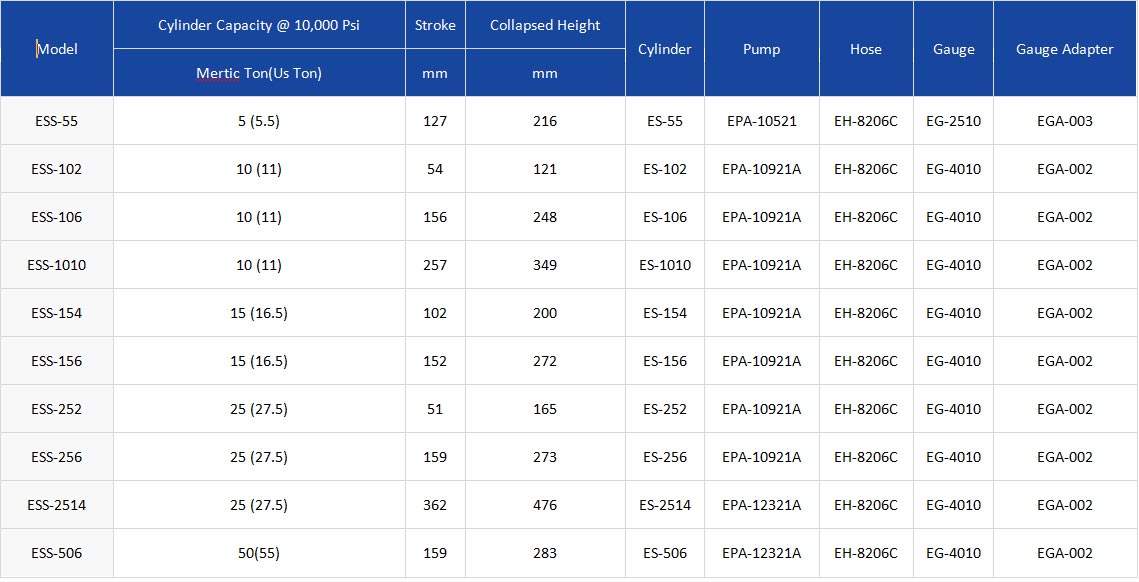

Dimension
hyd-pump-cyl-dim

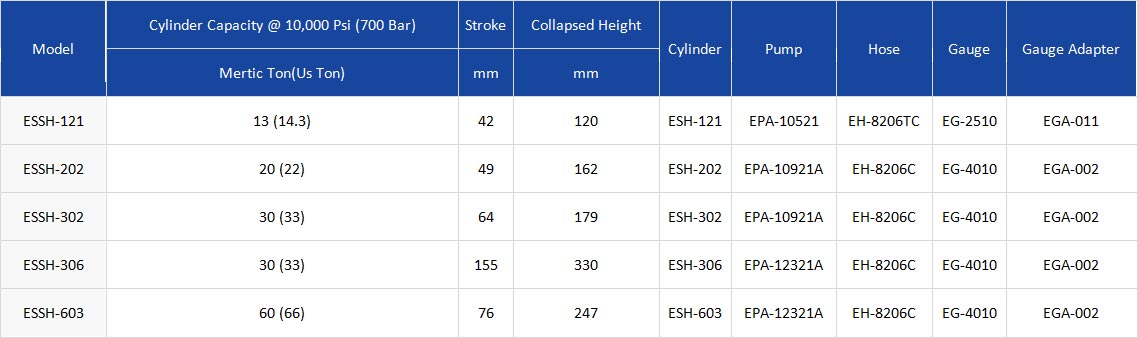

Hollow center cylinder sets
hollow-center-dim

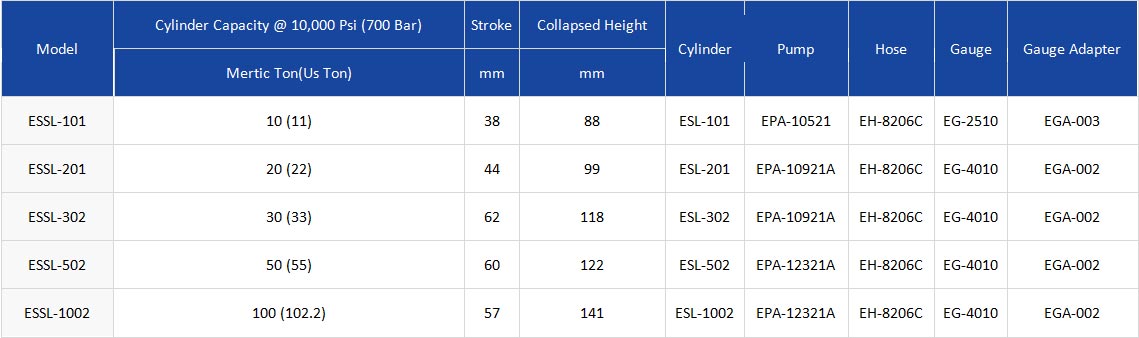

Low height Cylinder Sets
Low-height-1
Low height Cylinder Sets

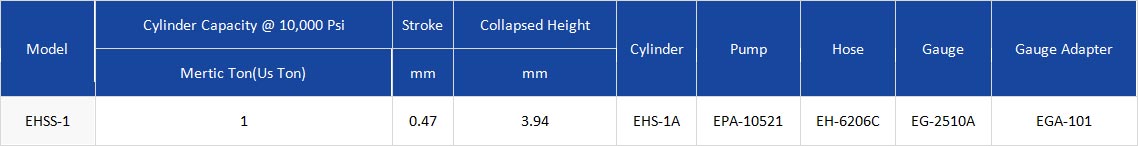

Low-height-2

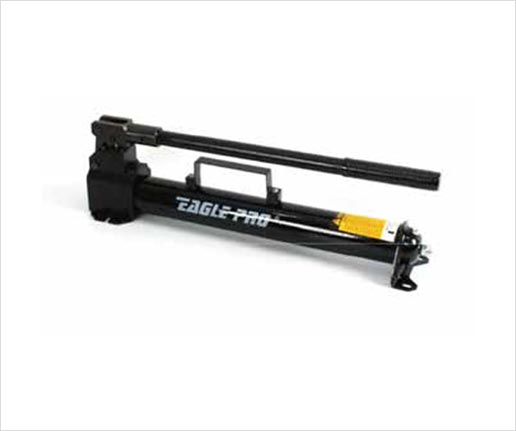

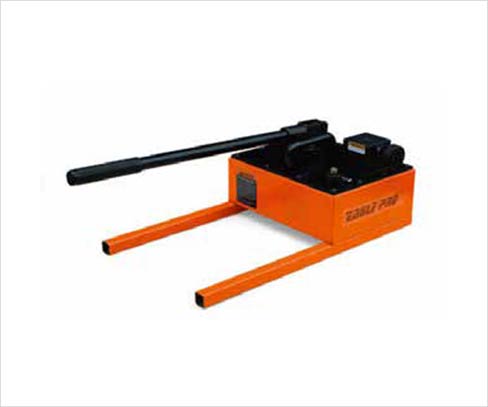

DualSpeed
Dual Speed Hand Pumps
EPA SERIES
The Eagle Pro EPA series hydraulic hand pumps are some of the most durable, powerful and reliable hand pumps in the industry today. The EPA series feature valve blocks that are machined from a single piece of high strength aircraft grade aluminum and high capacity reservoirs made from alloy steel* that maximizes durability. The EPA series hand pumps are compact and easy to carry around the job site. To get the job done faster, these powerful dual speed pumps offer some of the best flow rates in the industry. All of the EPA series hydraulic hand pumps feature an internal safety valve to prevent system damage.
*The EPA-10521 features an aluminum valve block and reservoir.
epa-10521
epa-10521
epa-10521
epa-10921

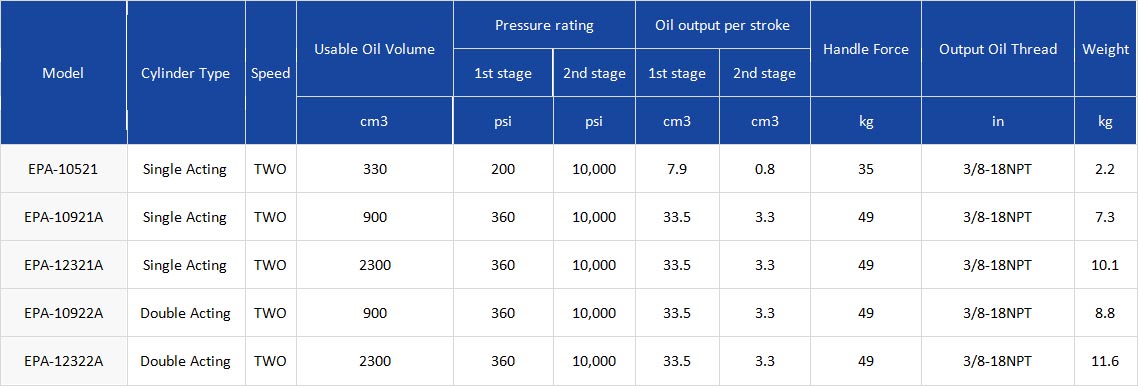

epa-dim-1

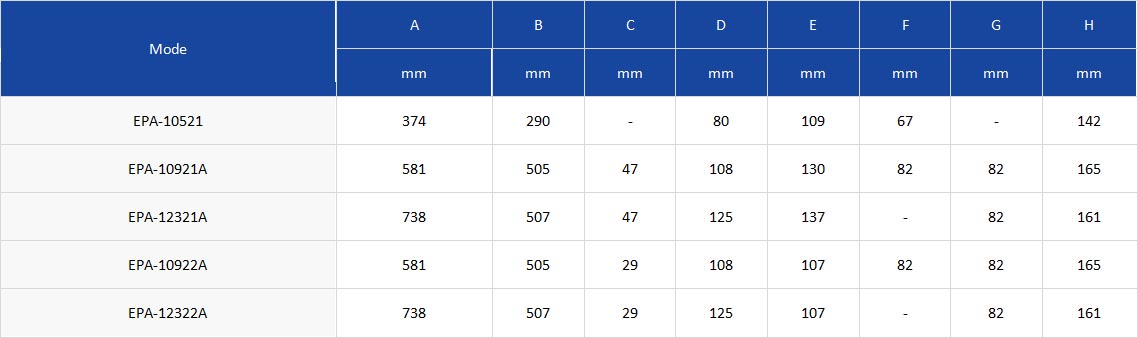

epa-dim-2
DualSpeed
Dual Speed Hand Pumps
EPA SERIES
The Eagle Pro EPA series hydraulic hand pumps are some of the most durable, powerful and reliable hand pumps in the industry today. The EPA series feature valve blocks that are machined from a single piece of high strength aircraft grade aluminum and high capacity reservoirs made from alloy steel* that maximizes durability. The EPA series hand pumps are compact and easy to carry around the job site. To get the job done faster, these powerful dual speed pumps offer some of the best flow rates in the industry. All of the EPA series hydraulic hand pumps feature an internal safety valve to prevent system damage.
*The EPA-10521 features an aluminum valve block and reservoir.

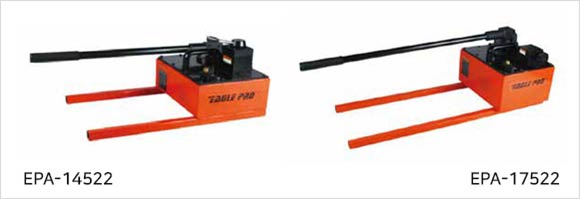

epa-14522

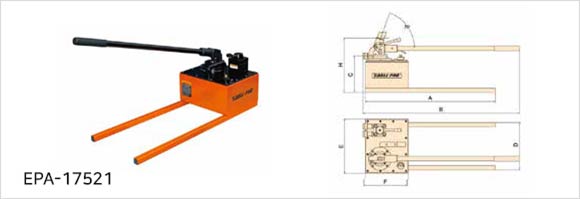

epa-17521

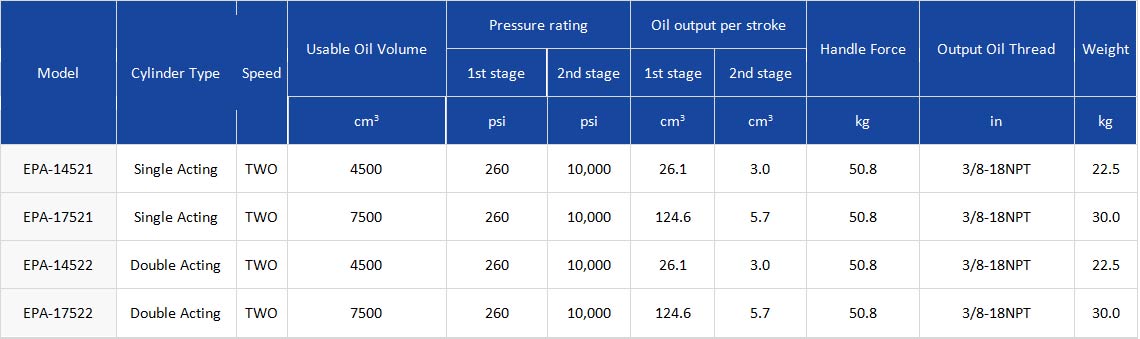

epa-14521-table

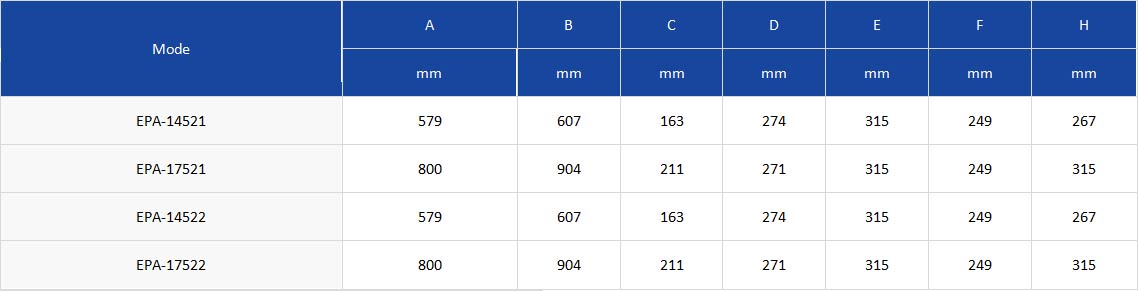

epa14521-table-2

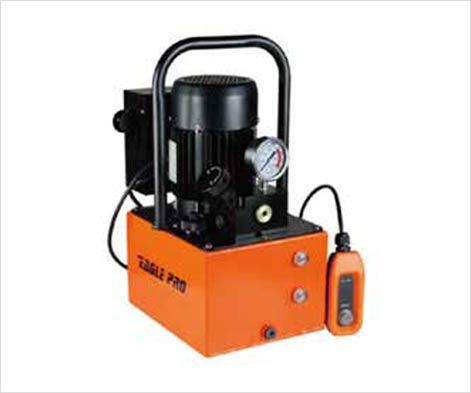

electric-pumps
Electric Pumps

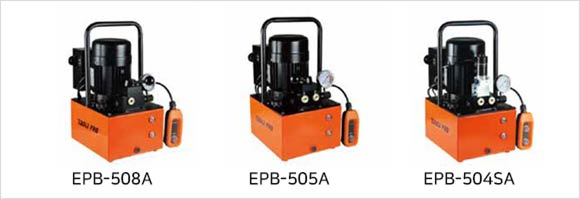

EPB SERIES
The Eagle Pro EPB series of electric hydraulic pumps feature various flow rates from 17 in3/min, 50in3/min, 100in%/min. Industrial strength TEFC (Totally Enclosed, Fan Cooled) induction motors provide performance and reliability when needed. Operator safety is crucial, all single phase EPB pumps come standard with a low voltage remote control. The EPB series pumps start under full load. Standard reservoirs are available in 1.3 gallon, 2.1 gallon, or 5.3 gallon sizes. If the application requires a larger reservoir, accessory large reservoir bolt on kits are available up to 20 gallons depending on the pump model. Roll cage kits and an external adjustable valve pressure regulator are available to increase the protection and performance of the pump.
508a

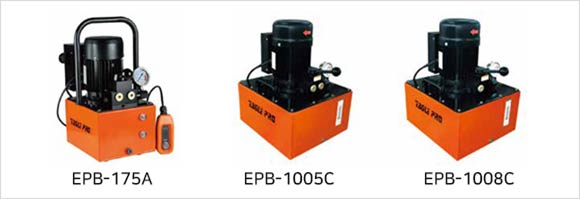

175a
** Advance Position Holds Pressure When Motor Is Shut Off

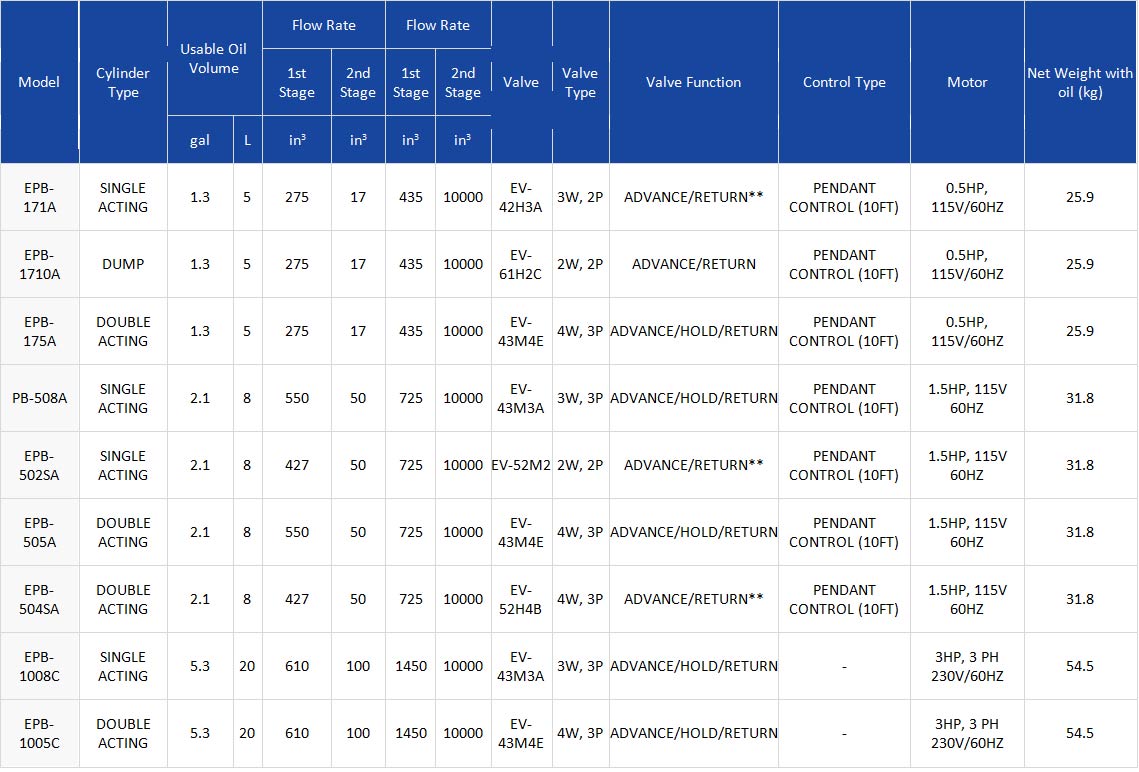

epb-series-table
