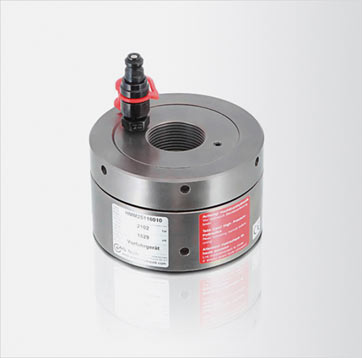

Hydraulic Nut

hydraulic-nut
HMM Series/AS TECH OPTIONS
  • Surfaces nickel plated or painted
  • Pressure medium HFC, oil, grease, water or emulsion
  • Different designs for the connection nipple
  • Rotatable right-angle connector
  • Cycle counter
  • Wireless stroke and pressure measuring
  • Protection cap
  • Temperature range -80°C up to 320°C

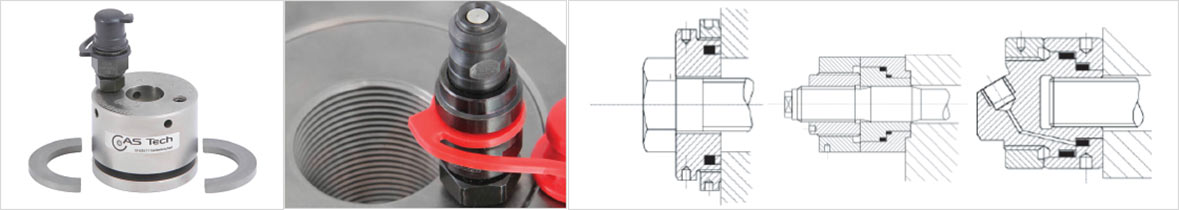

STANDARD DESIGN
  • Hydraulic nut with ring piston
  • Hydraulic nut with differential piston
  • Tensioning bolt
  • Force countering through counter nut, spacer plate or hydraulic shut-off device
  • Piston return stroke according to the design manually, hydraulically or automatically
  • All thread sizes and norms as well as bayonet
  • Without a threat with through hole available
hydraulic-standard-design

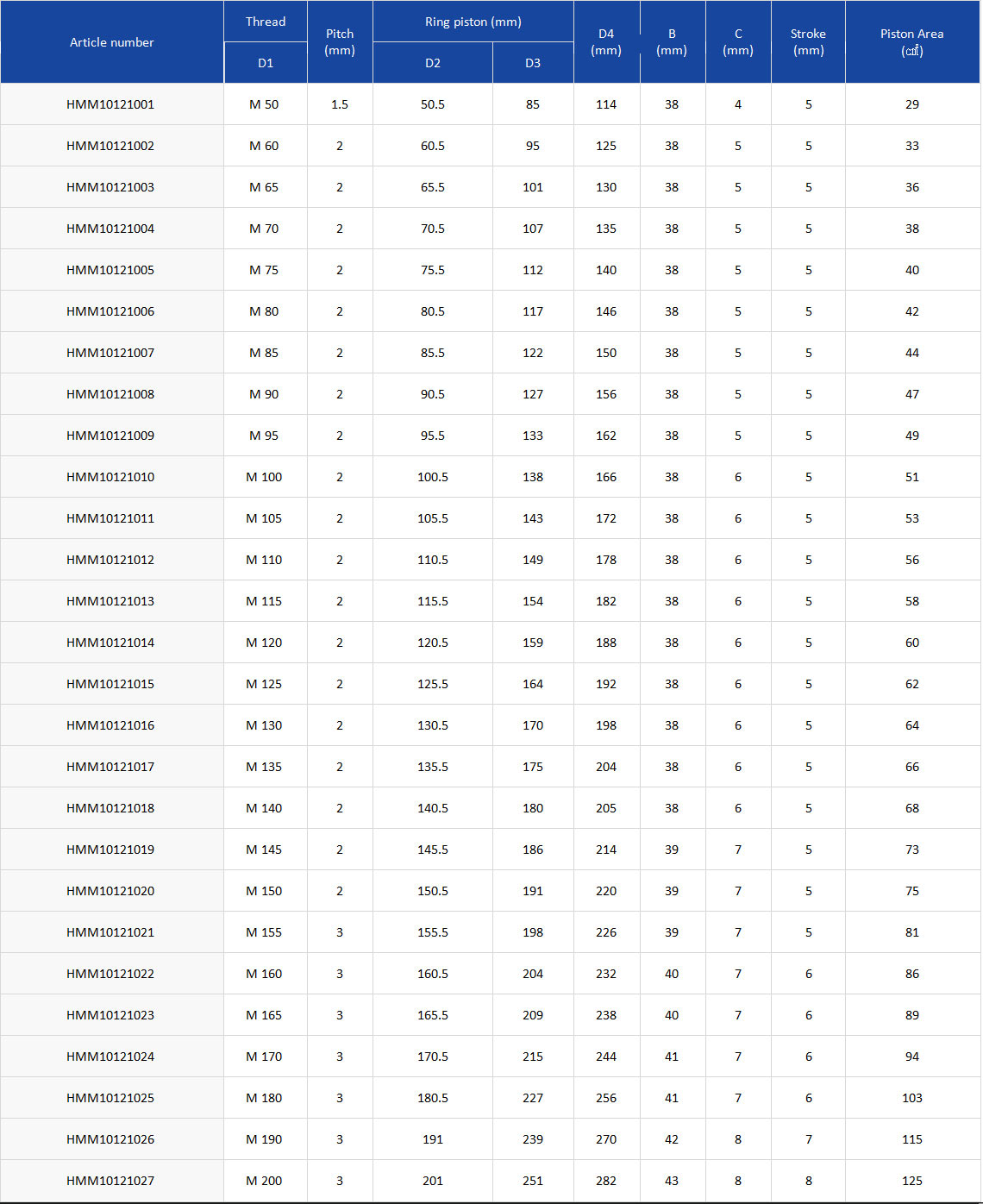

hydraulic-nut-table
